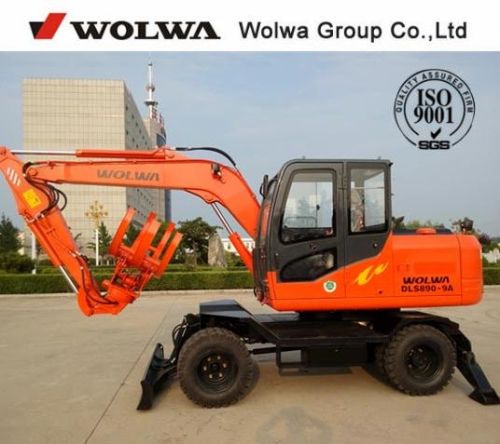

Wolwa Dls890-9a Wheeled Sugarcane Wood Loader

₹ 9.05 Lakh / 90000 90000 Set

MOQ1 Set(s)
Grab Weight293 kg
Max. Hauling Force47 kn
Power56kw/2200rpm
Working Pressure21 Mpa
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shandong Wolwa Construction Machinery Co., Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Tyre Gaugefront: 1650 mm, rear: 1610 mm
Operating Weight8000 kg
Cab Width950 mm
Overall Height1600 mm
Machine Height2775 mm
Upper Structure Width2140 mm
Max. Hauling Force47 kn
Transportation Length6450 mm
Max. Discharging Height6400 mm
Max. Loading Weight500 kg
Max. Loading Range7057 mm
Opening Width1260 mm
Grab Weight293 kg
Working Pressure21 Mpa
Power56kw/2200rpm
Outline Dimension1335*814*1280 mm

We are offering dls890-9a wheeled sugarcane wood loader
operating weight 8000 kg
power 56kw2200rpm
dimensions
upper structure width 2140 mm
cab width 950 mm
machine height 2775 mm
transportation length 6450 mm
overall height 1600 mm
grab weight 293 kg
outline dimension 1335*814*1280 mm
opening width 1260 mm
ground clearance (bob-weight) 1030 mm
tyre gauge front: 1650 mm, rear: 1610 mm
wheel shaft diameter 2400 mm
mouldboard width 2140 mm
mouldboard height 310 mm
operating scope
boom length 3500 mm
arm length 1800 mm
max. Loading range 7057 mm
max. Loading weight 500 kg
max. Discharging height 6400 mm
specifications
working pressure 21 mpa
rated flow 2*55 lmin
swing speed 0-14 rpm
travel speed 0-30 kmh
max. Hauling force 47 kn
max. Torque 2921600 n.mrpm
grade ability 25°
fuel tank 127 l
hydraulic oil tank 118l
rated capacity 2*25 mlr
