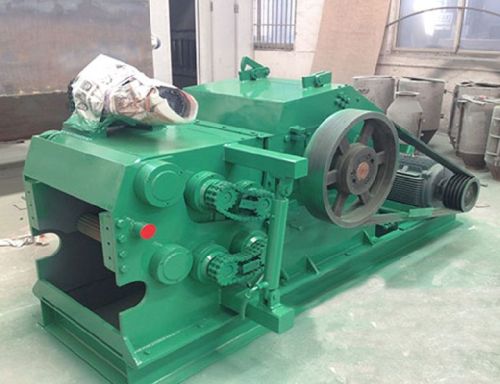

Wood Chipper

Drum chipper is specialized equipment for high-quality biomass sheet processing, which is applied to all paper mills, particle board plants, fiber plants and wood chip production base, wood chip export base.

1. Available raw material:Wood logs, branches and twigs with moisture more than 15%.
2. Sperical material blade, with high strength and anti-abrasion. Free of any professional tool sharpener, low maintenance cost.
3. Knife roll is wholistic processing and is undertaken dynamic balance test to improve accuracy and stable operation. It can process larger diameter wood with its special structure.
4. Low power consumption, with is 20-30% lower than similar product in market.
5. Feeding system consists of feeding and squeezing parts: Squeezing part is automatic controlled by hydraulic system; PLC controls the whole feeding system to guarantee the smooth feeding.
6. Forging dead plate, with high strength and long service time.

• Production capacity : 4-70 m3/h
• Range of Application : Wood logs, branches and twigs with moisture more than 15%.

  Drum chipper is specialized equipment for high-quality biomass sheet processing, which is applied to all paper mills, particle board plants, fiber plants and wood chip production base, wood chip export base. The slicer can cut logs, small diameter wood and other material into high-quality industrial wood chips with uniform length and thickness and flat cut. It can also cut branches, plates, etc..

The slicer can cut logs, wood branches, slab, waste veneer, bamboo, cotton stalks and other non-wood fiber stalks into certain specification sheet material, which can be material of particleboard, fiberboard, non-wood-based board and paper. It has advantages such as advanced structure and high quality sliced product, strong materials adaptability and easy operation and maintenance. This machine is composed of base, blade roll, upper and lower feed rollers, conveyor belts, hydraulic system and other components. The welded base that made of high strength steel is support of the whole machine. Two fly knives are fixed onto the blade roll by specially manufactured fly knives and pressure blocks. According to different raw material thicknesses, the upper feeding assembly can up and down within certain range by means of hydraulic system. Qualified flakes falling down through the mesh sieve and large flakes will be re-cut in the machine.
