Wood CNC Engraving Machine

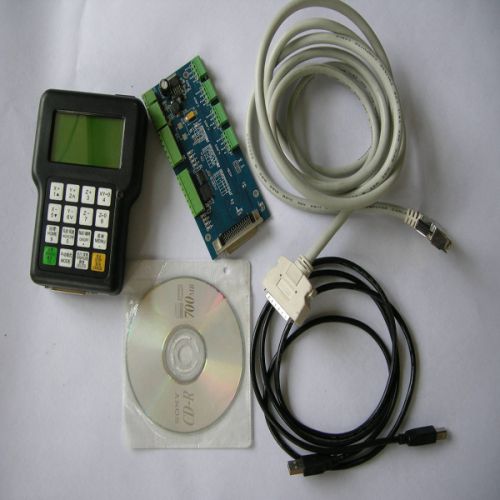

We are offering original brand new u disk dsp 0501 controller handle set for wood cnc engraving machine.
original brand new u disk dsp 0501 controller handle set for wood cnc engraving machine 3 axis
characteristic
1. Totally independent from pc platform;
2. Directly read files from u disk;
3. Easily process g code or plt file with super size;
4. Strong system and process file examining function;
5. Easy to update system program;
6. It supports high micro step which makes precise and fast process possible;
7. Support to process part of the file;
8. Reliable data protection and recover function;
9. Friendly operating interface
cautions
1. Don't use this product in strong magnetic filed or interfere environments;
2. Don't pnp u disk while it is running a file;
3. Protect it from water, moist, dust and fire;
4. Protect it from metal materials getting into the cover;
5. Forbad to open the cover, there is no any user maintainable parts inside;
6. Plug u disk and other lines gentle.
contents specification
processor 160m dsp
file memorizer 128m memorizer inside, it supports file with any size because of adopting mobile memorize technology
display lcd with 128 dot*64 dot
communication terminals usb terminal and u disk
file format g code, plt files (optional)
axes 3 axes
help function useful help information and guide
languages chinese, english, russia, france, japanese(optional or customize)
operating interface friendly buttons and menu drive
drive system step motors
interpolation function linear, curve
cutter adjusting function yes
spindle control function yes
system data inspect function yes
processing data inspect function yes
processing position adjusting function yes
multi working coordinates it has 9 working coordinates
stop point reprocessing function yes
copy processing function yes
data protection when power off yes
working temperature 0c to +70c
humidity
outer voltage 5 v
consumptions 2 w
dimensions(mm) 156*110*38.
