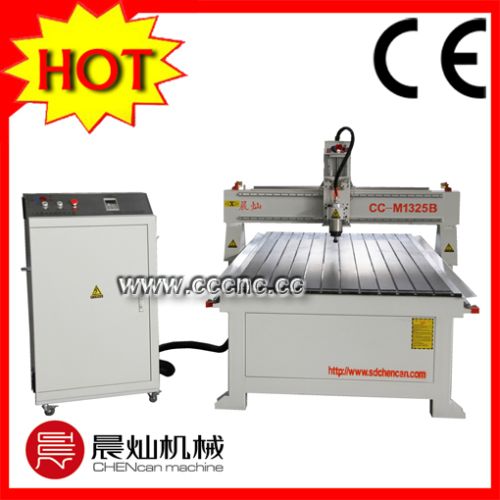

Wood CNC Router

We offer wood cnc router.
features:
1. It is convenient for the user to fix the materials by clamp.
2. Whole machine is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (vsr) to relief residual stress. The stability is excellent, not easy to be deformed.
3. The machine adopts gantry movement, it can process any kinds of materials freely.
4. X and y axes adopt rack gear and hiwin square guiding rail transmission, faster working, higher efficiency and low cost.
5. Z axis adopts imported ball-screw of germany and imported linear orbit, stable working, high precision and long life time.
6. Well compatibility: cad/dam designing software e.g. Type 3/artcam/castmate/wentai etc.
7. Has the function of re-carving after break point and power failure.
8. Has the function of forecasting process time.
9. Adopting advanced dsp system, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
10. Perfect oil-inject system makes maintenance much easier.
11. Has duct collector. It will clean up the carving residuum and make the operations tidier and more convenient.
12. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
applicable industries:
wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
advertisement: engraving and cutting various labels and number plate.
art craft: engraving characters of any languages and graphics on gifts and souvenirs.
applicable materials:
wood, aluminium board, plastic, density board, wave board, pvc, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
processing effect:
it can manufacture the following effects: relief, shadow, enchasement and so on.
technical parameter:
description parameter
x,y working area 1300*2500mm
z working area 200mm
table size 1440*3040mm
resolution 0.01mm
lathe structure seamless welded steel structure
x,y structure rack and pinion transmission, hiwin square guide rails
z structure germany-made rolling ball-screw, hiwin square guide rails
max. Idling speed 35m/min
spindle 3.0kw
spindle speed 0-24000r/min, variable speed
inverter fuling 3.7kw
working voltage ac380v/50hz
driver yako
working mode stepper
command g code (hpgl,u00,mmg,plt)
operating system dsp with usb interface
diameter of cutter φ3.175-φ12.7
cooling mode water-cooling
dust-collect function yes
work-holding by clamp
net weight 1300kg
software type 3, artcam, wentai
