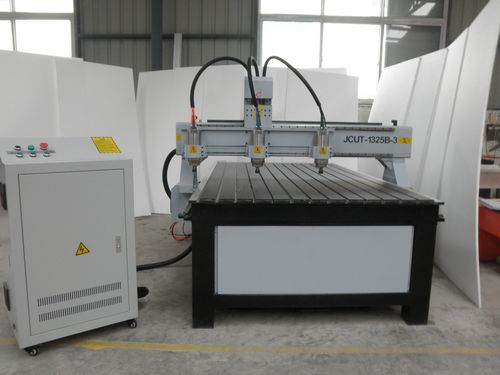

Wood CNC Router, Brand Name : JCUT

We offer wood cnc router jcut-1325b-3 (51''x98''x5.9'')
applications:
can be used on advertisement engraving, advertisement cutting, stone processing cutting, cu and al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting,
acryl board processing cutting, stamp cutting
features: optional(vacuum table and dust collector)
1) machine body: whole cast iron
2) guideway:xyz-axis use linear guideway
3) driving mode:gear
4) work dimensions: 1,300/3mm x 2500mm x 150mm
5) z-axis working area: 150mm
6) max. Feeding height: 120mm or bigger
7) cut thickness of material: ≤40mm
8) max. Speed: 25,000mm/min
9) working speed: 0 - 8,000mm/min
10) mechanical precision: 0.01mm
11) software: type 3 software, artcut software, artcam software
12) max. Power consumption: 3kw
13) power source: ac 220/50/60hz (or 110v/60hz)
14) driver type: stepper motor(xz-85byg, y-axis use two 85byg motors)
15) memory: without or (dsp)
16) spindle: 3x 3kw water-cooled spindle
17) spindle speed: 0 - 24,000rpm/min
18) blade diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)
19) control system: (ncstudio) or dsp (usb interface)
20) command: g code, u00, mmg, plt
21) running circumstance temperature: 0 - 45°c
22) relative humidity: 30% - 75%
packing:
pack dimensions: 2,000mm x 3200mm x 1,700mm
net weight: 950kg (with bracket)
gross weight: 1000kg
