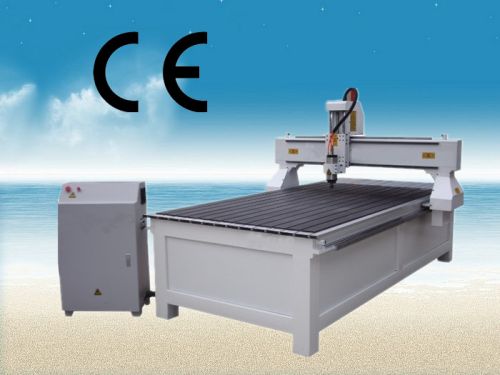

Wood CNC Router

Woodworking cnc router
1.Main Features
1)Lathe bed is cast by Iron,X,Y axis adopts gear wheel and rack transmission, Z axis adopt high precision ball-screw transmission, imprted high precision square linear,which can ensure the stability of processing.
2)High power inverter-drive spindle cooled by water.It adopts stepper motor and two motors for Y axis,which can ensure running speed to be up to 25m/min.
3)DSP off-line control,transmiting files by USB flash stick.
4)Dust collecting system can offer a clean working environment and reduce the manual labor
5)Vacuum table with 6 vacuum zones, which can absorb different size materials.
2.Parameter
Model
MS1325
X-Y-Z axis working area
1300x2500x200mm
Machine size
2150x3150mm
Resolutions
0.025mm
X-Y movement
Rack and pinion,gear drive/Taiwan
Z movement
Ball screw drive/Germany
Guide
Linear 20 square/Taiwan(PMI or HIWIN)
Max.speed
35,000mm/min
Max.cutting speed
25,000mm/min
Spindle
3kw/water cooled(Optional Italy HSD air cooled)
Spindle speed
24,000rpm
Inverter power
3kw
Drive motors
Stepper(optional Japan servo)
Working voltage
AC380V/50-60HZ,3-phase
