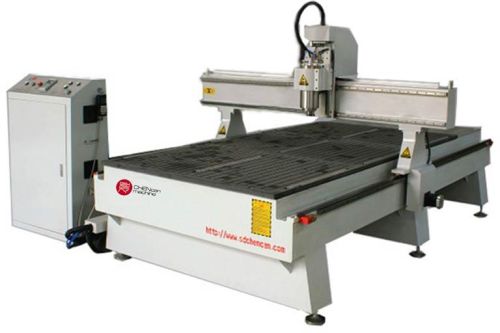

Wood CNC Router, Brand Name : Chencan

We are offering wood cnc router cc-m1325a
standard features
a.whole machine is welded with seamless steel structure , with aging treatment .
B.three axes adopt taiwan hinwin high precision linear orbit .x and y axes adopt rack and pinion transmission,fast working,high efficiency .z axes adopts germany and taiwan ball screw ,with high precision and long 了ife time.
c.has the function of re-carving after break point and power failure.has the funtion of forecasting process time .
D.perfect oil-inject system makes maintenance much easier .
E.the dsp operating instruction in english , a set of cutters,software,necesary tools and accessories for free.
Applications:
a.wood processing : processing of various furniture such as door ,window, cabinet,craft wood door ,screen and so on .
B.advertising: billboard, logo,sign,3d characters cutting,acrylic cutting,ledneon channel,literal-hole cut,lightbox mold,stamp,mould
c.art craft: engraving characters of any languagess and graphics on gifts and souvenirs.
D.decoration: acrylic, density board, organic glass, soft metals like aluminum, etc.
Technical parameter
description model: cc-m1325a
x,y working area: 1300*2500mm
z working area: 200mm
table size: 1440*3040mm
resolution: 0.01mm
max. Idling speed: 35mmin
spindle motor power: 4.5kw made in china
working mode:stepper
operating system: dsp control system
cooling mode :water-cooling system air-cooling
vacuum system:yes
vacuum pump:5.5kw water-cooling
driver: yako driver
inverter:fulling brand inverter
spindle rotate speed:0-24000rmin
