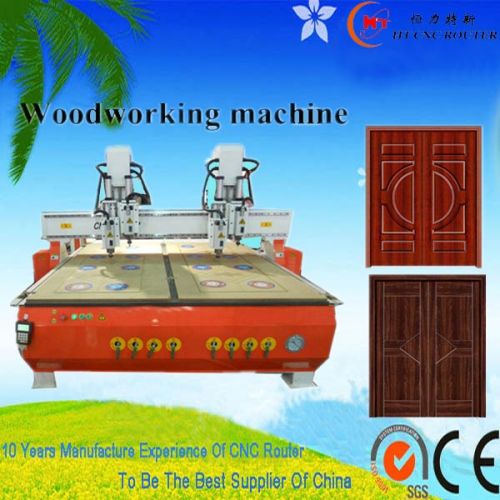

Wood CNC Router

₹ 90,500 / 20000 20000 Set

MOQ1 Set(s)
SoftwareWentai
Drive motorChina-made stepper motors
DescriptionDouble heads four axis ATC wood cnc router
Processing accuracy±0.05mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Spindle power4.5KW air cooling spindle
Working size2000*2200mm
SoftwareWentai
Working voltageAC380V/60Hz
DescriptionDouble heads four axis ATC wood cnc router
Drive motorChina-made stepper motors
Machine weight1800KGS
Command LanguageG-code
Control systemDSP handset
Machine size3.50*2.26*1.95m
Processing accuracy±0.05mm
Spindle speed0-18000r/min
Repositioning accuracy±0.05mm

We are offering double heads four axis atc wood cnc router.
Application:
wood furniture industry: especially for processing solid wood door, cabinet door, wardrobe door and other wood doors.
feature:
1. It can engrave two wooden board at one time, and also can engrave two different patterns on each board at one time.
2. It is a good assistant for processing wooden door.
3. If the four spindles are numbered as a.b.c.d from left to right, then ac has the same cutter and work at the same time, and the same is true to bd.
performance parameters:
xy working area 2000*2200mm
z working area 300mm
max. Working speed 25mmin
max. Traveling speed 50mmin
processing accuracy â±0.05mm
repositioning accuracy â±0.05mm
spindle power 4.5kw air cooling spindle
spindle speed 0-18000rmin
working voltage ac380v60hz
command language g-code
control system dsp handset
drive motor china-made stepper motors
software wentai
machine weight 1800kg
machine size 3.50*2.26*1.95m
