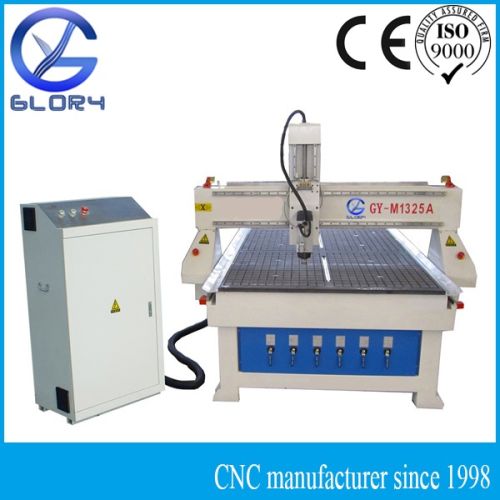

Wood CNC Router Machine

We are offering wood cnc router machine.
1. Seamless steel lathe bed
2. Taiwan linear square guide
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Manual oil-injection system
ideal for:
1. Timberwood
2. Mdf
3. Plastics
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
specification gy-m1325a gy-m1530a gy-m2030a gy-m2040a
working area
(x axis) 1300mm 1500mm 2000mm 2000mm
working area
(y axis) 2500mm 3000mm 3000mm 4000mm
clearance (z axis) 200mm (300mm optional)
spindle 3.5kw air-cooled
spindle speed adjustable 0-18,000 rpm
tool change manual tool-change
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) taiwan ball screw, 20mm
drive motors stepperservo motors
inverter fulingdelta
driver yakoyaskawa
command g code
cutter diameter �3.175-�12.7mm
maximum travel speed 35mmin
table top gridvacuum table tops with absorption function
vacuum pump 5.5kw water cooled
controller dsp handle
power requirements 3-phase 380v50hz, 220v optional
optional parts:
1. Rotary axis
2. Alignment pop-up pins
3. Gang drill
4. More spindles
5. Heavy duty lathe bed, etc.
note:
all the parts of machine can do some changes to meet your requirements.
Such as the motor (stepper motor or servo motor), spindle (air cooled or water cooled, hsd or chinese brand), table of the machine (vacuum table, t-slot table or combination of t-slot & vacuum table) and operating system (dsp, nc studio or syntec), etc.
