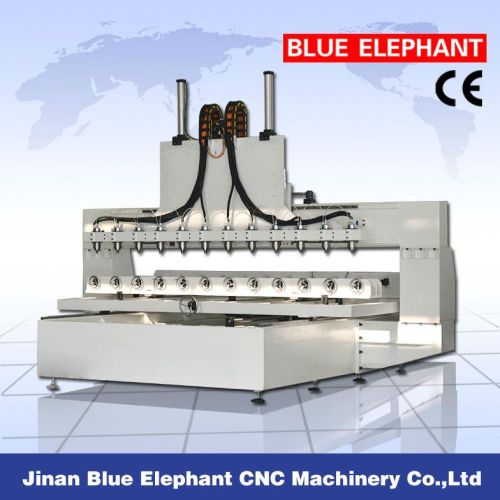

Wood CNC Router Machine

We are offering wood cnc router machine.
Technical parameters
model ele2513
working size 2500*1300mm
z axis z axis can reach 300mm
type 4 simultaneous axes multi-spindle cnc center
spindle power 8pcs of 2.2kw water cooling spindle (options:1.5kw)
control system original ncstudio 4 axis control system
linear rail 30#hiwin linear guide way made in taiwan
transmission imported high precision ball screw transmission
(double ball screw for z axis)
motor driver japan yaskawa servo motor and driver
rotary device 8pcs of rotary device
diameter: 200mm
length: 1200mm
working voltage ac380v3ph50hz
(option： ac220v1ph50hz)
ps. All the working size and specifications can be customized according to your requests.
Function & features
with 8 pcs of spindles and 8 pcs of rotary devices, working at same time, can improve working efficiency.
Original 4 simultaneous axes control system, making sure the xyz axis and rotary devices work at same time, suitable for working on irregular cylinders, such as sculptures, furniture legs.
Movable table,multi-functional design, can work on both flat objects and cylindrical objects
double ball screws for z axis, making sure the z axis is much more powerful.
High quality details: each part of machine use world famous brands, such as taiwan hiwin 30# square linear guide, original imported taiwan tbi ball screw, japan yaskawa servo motors, shanghai cardiff cable and so on.
Applicable industries: furniture (table legs, chair legs), stair handrails, sculptures, 3d relief and so on.
