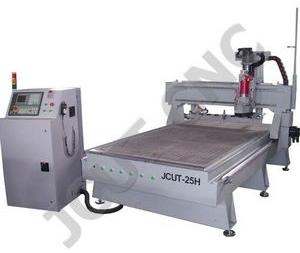

Wood CNC Router With Atc Jcut-25h

Jcut- 25h Auto Tool Changing Cnc Woodworking Machine
specifications:
Professional and Efficient Woodworking Engraving Machine
this Machine Suitable for Large-volume, Joint Processing of Multi-model Tool
1 the Machine Can Choose Adopt Japan Yaskawa Servo Motor ,Built-in Encoder,It Can Stop Automatically When Graunch Happens,So Can Avoid Accidents .
2.it is Round Type Automatic Tool Changing System .the Exchange Time is Only 8 Seconds.x Z Axises Adopt Ballscrew, High Precision, the Structure is More Stable.
3.italy Air Cooling Spindle with Too Changing, High Power , Original Cutters , High Precision .long Lifetime.
4.whole Machine is Welded with Seamless Steel Structure, the Regidity is Good , Not Easy to Be Deformed.the Side Board of Gantry Adopt Steel Structure.
5.all Adopt Imported Square Oribit ,Two Line Sliding Track, Heavy Loading, Stable Working , High Precision and Long Lifetime.adopt Imported Ballscrew , High Precision.
6.taiwan Control System: the Embedded Numerical Control System Based On Windows Platform Can Upgrade the Functions Infinitively. Anti-interference Design of the Hard and Soft Ware Synchronistically Make Sure of the Reliable Operation. Advance 3d Space Curve Prediction Algorithm Can Make Sure of the Evenness of Polyline and the Speed and Precision of Curve Lines. Advanced File Pretreatment Function Can Correct the Error in the Files and is Compatible with the Process Codes of Multiple National and International Software. (such as Mastercam,Typ3,Ug,Artcam,Caxa).
7.6 Zones Vaccum Table, Special Wood Door Engraving Area Make the Products More Perfect.
skm25 is Round Type Automatic Tool Changing System .the Exchange Time is Only 8 Seconds. X Z Axises Adopt Ballscrew, High Precision, the Structure is More Stable.
parameters:
jcut Model:jcut-25h Cnc Woodworking Machine
working Area (x*y*z):1300x2500x200mm(51x98.4x 7.8inch)
table Structure:by Suction
processing Accuracy:0.05mm
repositioning Accuracy:0.02mm
spindle:5.5kw Variable Speed , Water-cooled
spindle Rotating Speed:0-24000rpm/min
max Moving Speed:20000mm/min
working Speed:0-15000mm/min
driving Mode:z-ballscrew ,Xy-rack Drive
voltage:ac380v/50hz
max. Power Consumption:7.2kw
feeding Height:150mm
drive Motor:servo
command:g.code , Mmg , Plt , Uoo,Hpgl
compatible Software:type3, Artcut, Artcam, Mastercam Software
certificate:ce,Fda
pack Dimensions:2280mm X 3500mm X 2050mm Wooden Trunk
net Weight:1500kg
option: Rotary Axis ,Or Bigger Spindle .
different Working Size:
900x1500mm/ 1200x1200mm/1200x1500mm/ 1200x1800mm/ 1200x2400mm/ 1500x3000mm or other Sizes According to Customers’
