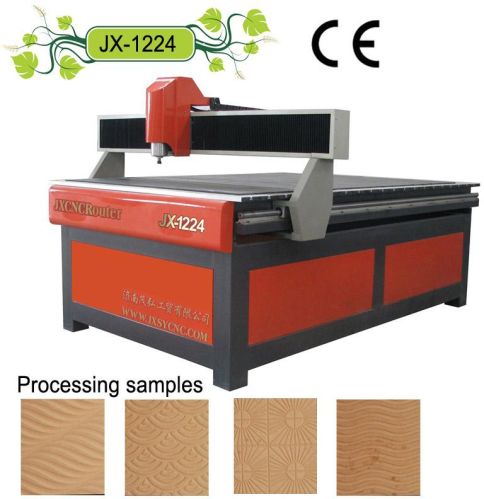

Wood Composite Panels CNC Cutting Machine

We offer Wood Composite Panels Cnc Cutting Machine.
Model jx-1224
x,y working area 1200mmx2400mm
z working area 120mm
table size 1340mmx2700mm
max.speed 6m/min
max. Carving speed 5m/min
work accuracy 0.01mm
resolution 0.025mm
positioning accuracy 0.05mm
spindle power 2.2kw
spindle rotating speed 0-24000rpm/min
surroundings for software windows2000/xp
work mode step motor
work voltage ac220v/50hz
（适合于大批量的有色金属板加工，例如：pvc板，亚克力，绝缘材料；木板，复合板）
suitable industry
suitable for high-volume processing of non-ferrous metal sheet, such as aluminum veneer, pvc board, acrylic,wood and mdf composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.
performance characteristics:
1. Imported high precision ball screw transmission ensures stable movement and high accuracy of machine
2. Well-known brand domestic spindle, water cooling, frequency conversion ,brushless, low noise, strong cutting strength and ensuring long time mass processing
3. Drivers with high definition subdivision ensure fast speed and high accuracy.
4. Software: compatible with cad/cam software such as type3/artcam/ucancam etc.
