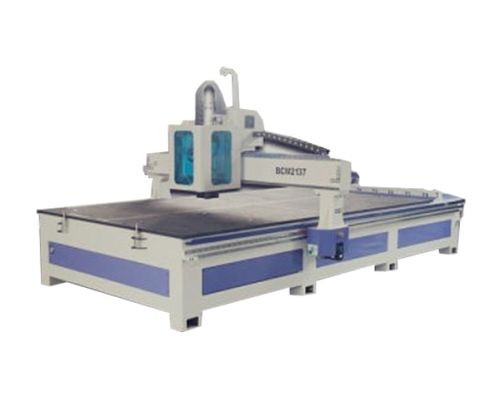

Wood Cutting Machine

Get Latest Price

Traveling speed2500*4550*250mm
Transmission systemHardened lapped rack and pinion in X,Y axis+ Taiwan ball screw in Z axis
Electronic accessoriesTaiwan Delta VFD/Schneider low voltage electrical components/ high quality cable
Vacuum system5.5kw vacuum pump
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Kailash Tech Solutions

Rajajinagar, Bangalore, Karnataka

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Positioning modePositioned in three points by portable high precision positioning cylinder + portable positioning blocks
Lubricating systemAutomatic lubricating system
Safety systemOver travel protection/scram protection/ limit location/Air pressure alarm/safety protection guard/design scheme/electric protection
Tool magazine8 tools with linear type tool magazine
Vacuum system5.5kw vacuum pump
Machine weight2800kgs
Spindle parameters9.0kw ATC
Transmission systemHardened lapped rack and pinion in X,Y axis+ Taiwan ball screw in Z axis
Traveling speed2500*4550*250mm
Driving systemX,Y axis servo+Z axis brake servo
Working voltageAC380V/3 PH/50Hz
Working speed20m/min
Traveling speed60m/min
Electronic accessoriesTaiwan Delta VFD/Schneider low voltage electrical components/ high quality cable
ControllerSyntec 6MB
Working area2100*3700mm
Table structureDouble adsorbable countertops, material in HPL, large suction by slots

Wood cutting machine

BCM2137C ATC cnc router is specialized for woodworking It is designed with auto tool changer which can change tools automatically We aopt high end specifications to ensure the machine fantastic stability and high accuracy.

CNC router configurations

CE Standard
Working table 2100*3700*200mm
ATC linear tool changer system (with 8 tools)
9.0kw HSD air cooling spindle
Delta inverter
Dleta servo motor and driver
X, Y axis alloy hard-toothed surface rack and pinion, Z axis Taiwan TBI ball screw transmission
Syntec6MB control system
Movable high precision positioning cylinder ( X: 2pcs+ Y: 1pcs)
Working center system (8 pcs of tools)
Automatic oiling system with 8 tool changers
Schneider electronics from German
limit switch
Vacuum table
5.5kw vacuum pump
