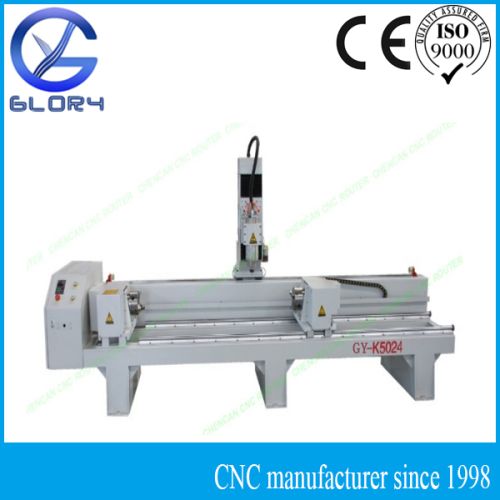

Wood Cylinder Carving Router Machine

We are offering wood cylinder carving router machine.
highlight:
this machine is specially used for engrave wood cylinders and foam cylinders, etc.
key features:
1. Seamless steel lathe bed
2. Germany ball screw
3. Well compatibility: type 3, castmate, artcam, etc
4. Re-carving function after power failure
5. Stepper motors
6. Manual oil-injection system
7. Dsp operating system
8. High soft electric cables
9. French schneider for small electric parts
ideal for:
timberwood cylinder, foam cylinder, bamboo, etc.
processing effect:
engraving, cutting, drilling, milling, enchase, relief, etc.
specification gy-k5024
maximum work diameter 500mm
maximum work length 2400mm
spindle 3kw
spindle speed adjustable 0-24,000 rpm
tool change manual tool-change
linear guide taiwan pmi
drive system
(z axis) germany ball screw 25mm
drive motors stepper motors
inverter fuling
driver yako
command g code
cutter diameter φ3.175-φ12.7mm
maximum idling speed 35mmin
precision 0.01mm
controller dsp handle
power requirements 3-phase 380v50hz
custom sizes and upgrades for the components are available on request.
optional parts:
1. Weihong controller
2. More rotary axis and spindle
3. Automatic oil-injection system
4. Servo motors and drivers.
