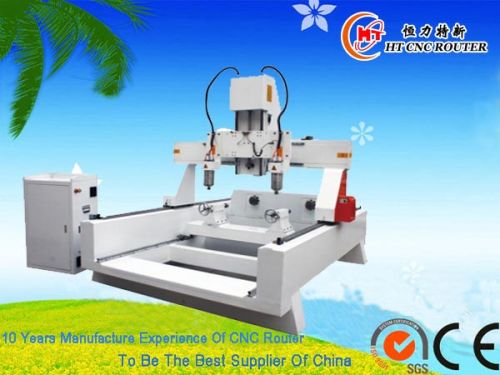

Wood Design Machine Router

₹ 90,500 / 15000 15000 Set

MOQ1 Set(s)
StructureSteel structure
SoftwareWentai
DescriptionSteel structure stable operate CE SGS cnc wood design machine router
Spindle Power2.2KW*2
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Working size1600*1800*150mm
CommandG-code*.u00*.mmg*.plt
Control cabinetIndependent cabinet
SoftwareWentai
Working Accuracy±0.05mm
Drive MotorStepper
StructureSteel structure
Control SystemNCstudio
Max. Rapid Travel Speed15000mm/min
X,Y,Z structureX,Y gear wheel, Z ball screw and square guide way
Max. Working Speed12000mm/min
Spindle Power2.2KW*2
DescriptionSteel structure stable operate CE SGS cnc wood design machine router
Working voltageAC380V/50Hz
Spindle Speed0-24000r/min
Repositioning Positioning Accuracy±0.05mm

We are offering steel structure stable operate ce sgs cnc wood design machine router.
Application
3d column material engraving.
Feature
1.the machine can engrave two cylinder materials fixed on the rotary axis at one time, improving the processing efficiency.
2.the machine also can realize the flat engraving if added a platform over the rotary axis.
Specification
max diameter of cylinder 500mm
max length of cylinder 1500mm
working area 1600*1800*150mm
working accuracy ±0.05mm
repositioning positioning accuracy ±0.05mm
max. Rapid travel speed 15000mmmin
max. Working speed 12000mmmin
spindle power 2.2kw*2
spindle speed 0-24000rmin
drive motor stepper
x,y,z structure x,y gear wheel, z ball screw and square guide way
structure steel structure
command g-code*.u00*.mmg*.plt
working voltage ac380v50hz
control system ncstudio
software wentai
control cabinet independent cabinet
n.w. 900kgs
packing size 2550*2050*1900mm
