Wood Engraving Machine, Brand Name : rodeo

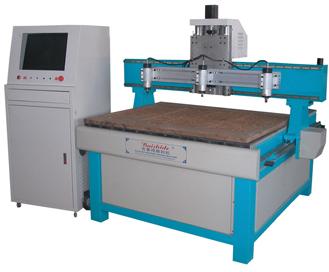

We are offering RD-1212 Wood Engraving Machine.
Description:Applicable industry:
Billboard industry: the characters cutting, plate production, LED neon light trough, hole-shaped literal cutting, plastic light boxes mold making.
Second, the performance characteristics:
2.1 the optional imports of ball screw, linear guide and high quality accessories.
2.2 high-power, high-performance drives and motors.
2.3 overall steel structure bed after secondary aging treatment, motor drive with a well-known domestic brands, in order to ensure the accuracy and reliability of the whole movement.
2.4 popular X-axis dust-proof structure.
2.5 Software compatibility: the as known Type3artcarmcastmateproeCorelerow Wentai a variety of CAD CAM software.
2.6 PC control system, to achieve a three-dimensional dynamic display of track.
2.7 high-speed processing, Qu consistent, straight-line speed the empty running speeds of up to 9 m min.
Third, the technical parameters:
3.1 Model: RD-1212
3.2 Working stroke: (X × Y × Z) 1200mm × 1200mm × 100mm * 2
3.3 Platform Size: 1300mm × 1420mm
3.4 Maximum operating speed: 5m-6mmin
3.5 Maximum engraving speed: 2m-3mmin
3.6 carved instruction: G code * u00 * mmg * plt Surroundings for
3.7 Software running environment: windows982000xp
3.8 Operating voltage: AC220V50Hz
3.9 Spindle power: 1.5kw
3.10 Spindle speed: 0-24000rpmmin
3.11 works: Stepping.
