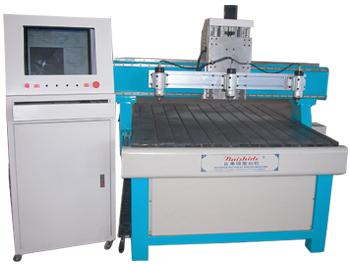

Wood Engraving Machine, Brand Name : rodeo

We are offering rd-1212 wood engraving machine with high quality.
1.whole triaxial square linear guide imported high-precision, high accuracy, speed, wear.
2.row four ball slider, loading capacity, smooth operation
3.two axes are rack rotation speed, high efficiency, the blank line speed up to 28 m min, the processing speed of 12mmin.
4 spindle high-speed high-power water-cooled spindle motor, hand carving a variety of materials are the heart should be.
5 bed overall welded steel strong, forceful, smooth rotation, making the long high-speed operation is no distortion, no jitter;
more than
x.y working area 1200mmx1200mm
working area 150mm
machine size 1700mmx1700mm
max working speed >20mmin
clamping the form by suction
processor dsp100mhz
connection usb
carving instruction g*.u00*.mmg*.plt
running condition dsp
total power (spindle, vacuum, vacuum) 2000w
voltage 220v 50hz
main shaft power 800kw1500w
main shaft speed 0-24000rpmmin
working model step
1 applications: woodworking: three-dimensional wave board processing, wooden doors, screens, process window for processing, secondary processing of various furniture products.
2 advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
