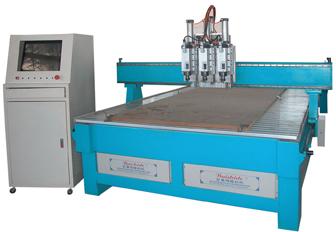

Wood Engraving Machine, Brand Name : rodeo

We are offering wood engraving machine.
description:bulls tool change woodworking engraving machine
first, the scope:
applies to the three-dimensional wave board processing, cabinet doors, solid wood door, craft wooden doors, paint doors, screens, craft fan window processing, polisher, game cabinets and panels, mahjong table, computer table and plate furniture auxiliary processing.
second, the performance characteristics:
2.1 adopt imported linear square rails, four-row ball slider, loading capacity, smooth operation and long life. The original imported ball screw, high accuracy and precision under the knife.
2.2 using high accurate rack and pinion, speed, high precision.
2.3 completely divorced from the computer, equipped with a usb interface dsp operating system can be remotely operated, handle operation, the operation easier and more humane design, unique intelligent budget law, give full play to the potential of the engine, to achieve high-speed processing, qu linear synchronous curve more perfect, not accounting for the computer memory and can automatically start and stop cutting spindle.
2.4 software compatibility, support type3actcamcastmate wentai a variety of cad cam design software.
third, the performance parameters:
3.1 working stroke: 1300mm × 2500mm × 200mm
3.2 platform size: 1480mm × 3000mm
3.3 maximum traveling speed:> 25mmin
3.4 control system: weihong control
3.5 interface interface: usb
3.6 carved instruction: g generation u00 * mmg * plt surroundings for
3.7 software operating environment: win982000xp
3.8 power: (spindle) 1840w
3.9 operating voltage: 380v50hz
3.10 spindle power: 3.0kw
3.11 spindle speed: 0-24000rpmmin
3.12 works: stepping
