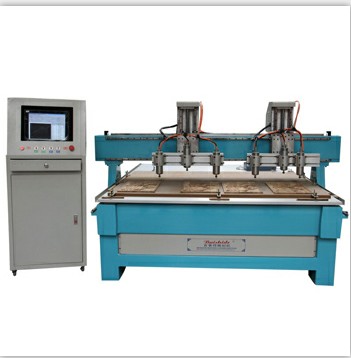

Wood Engraving Machine, Brand Name : RODEO

We are offering wood engraving machine rd-1815-6 with high quality
description:1.whole triaxial square linear guide imported high-precision, high accuracy, speed, wear.
2.row four ball slider, loading capacity, smooth operation
3.two axes are rack rotation speed, high efficiency, the blank line speed up to 28 m min, the processing speed of 12mmin.
4. Spindle high-speed high-power water-cooled spindle motor, hand carving a variety of materials are the heart should be.
5.bed overall welded steel strong, forceful, smooth rotation, making the long high-speed operation is no distortion, no jitter;
6. Multiple head can be processed at the same time, also can be used alone, to improve efficiency, economic times more than the single head, practical
x.y working area
1800mmx1500mm
working area
150mm
machine size
2300mmx2000mm
max working speed
>20mmin
clamping the form
by suction
processor
dsp100mhz
connection
usb
carving instruction
g*.u00*.mmg*.plt
running condition
dsp
power (spindle, vacuum, vacuum)
800w
voltage
220v 50hz
main shaft power
800kw1500kw
main shaft speed
0-24000rpmmin
working model
step
1 applications: woodworking: three-dimensional wave board processing, wooden doors, screens, process window for processing, secondary processing of various furniture products.
2 advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
