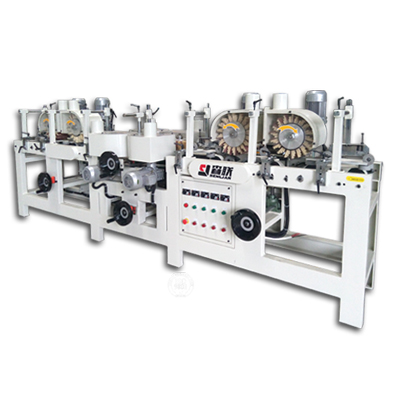

Wood Line Automatic Sanding Machine, Brand Name : SENLIAN

Wooden line sanding machine
function: it applies eight axis sand rollers which combine the sand paper with sisal material, this special structure is capable of sanding shaped wooden line and very convenient to replace the sand paper.
The rotation rate and angle of each sand roller is adjustable, with four top sand rollers and four side sand rollers which can sand the wooden base material and primer.
�application filed:
door line, window line, decoration line, etc.
�application line:
solid wooden line, ply, mdf, pvc, etc.
Technical parameters
working width 400mm
max working thickness 80mm
min working length 380mm
working speed 0-25mmin
full power 3.71kw 380v
estimated weight 600kg
overall dimensions 3600*900*1300mm
main parts
electric motor unis
frequency converter shihlin
conveyor timing belt
voltage transformer copper wire and magnetic flux leakage
electrical appliance chint
