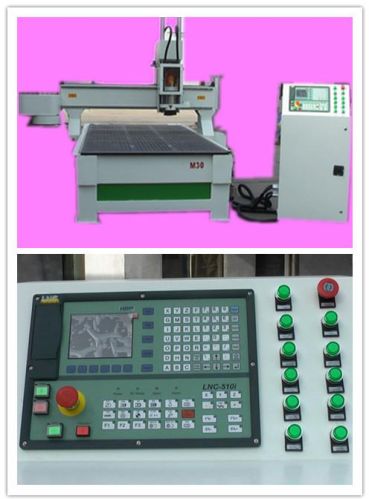

Wood MDF Cutting Machine, CNC Router Machine

We are offering wood mdf cutting machine, cnc router machine.
features:
1.adopt japan yaskawa servo motor ,built in encoder,it can stop automatically when graunch happens,so can avoid accidents .
2.it is round type automatic tool changing system .the exchange time is only 8 seconds.x z axises adopt ballscrew, high precision, the structure is more stable.
3.italy air cooling spindle with too changing, high power , original cutters , high precision .long lifetime.
4.whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.the side board of gantry adopt steel structure.
5.all adopt imported square oribit ,two line sliding track, heavy loading, stable working , high precision and long lifetime.adopt imported ballscrew , high precision.
6.taiwan control system: the embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3d space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as mastercam,typ3,ug,artcam,caxa).
7.6 zones vaccum table, special wood door engraving area make the products more perfect.
m30 is round type automatic tool changing system .the exchange time is only 8 seconds. X z axises adopt ballscrew, high precision, the structure is more stable.
technical specifications:
model
m30
x,y working area
1300mmx2500mm
z working area
200mm
table size
1300mmx2500mm
max travelling speed
>50m/min
reposition precision
0.05mm
table structure
by suction
command
g code*.u00*.mmg*.plt
x,y,z structure
z ballscrew, x,y gear wheel
power(spindle is not included)
3500w
work voltage
ac380v / 50hz
spindle power
8.0kw
