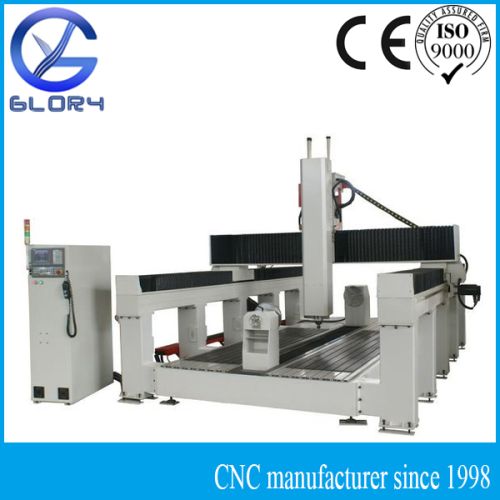

Wood Modeling CNC Router Machine

We are offering wood modeling cnc router machine,
highlight:
this machine is specially used for engrave large non-metallic mould, especially automotive foam mould, wooden ship mould, aviation and train wood mould. And wood mould casting, food mould (e.g. Moon cake mould) and other mould making.
with the rotary axis, it can do any kind of 3d cylinder material and mould processing for advertisement industry.
Key features:
1. Seamless steel lathe bed
2. Germany ball screw
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Servo motors
7. Manual oil-injection system
8. Syntec operating system
9. X and y axis is equipped with dust-proof cover
10. High soft electric cables
11. French small electric parts
12. Protective balance pneumatic cylinders for z axis
13. Rotary axis
ideal for:
1. Timber, wood
2. Eps (any kind of foam)
3. Plastics, mdf
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
specification gy-bs2030bg
working area
(x axis) 2000mm
working area
(y axis) 3000mm
clearance (z axis) 1000mm
working area
(rotary axis) 800mm
machine dimension 2100*3140*1100mm
spindle air-cooled 913kw hsd
spindle speed adjustable 0-18,000 rpm
drive system
(x & y axes) helical rack & pinion, 1.5 module
linear guide taiwan hiwin 30mm
drive system
(z axis) germany ball screw 32mm
drive motors servo motors, yaskawa
(three 1300w motor for x, y axis, one 850w for z axis)
inverter deltafuling
driver yaskawa
command g code
cutter diameter φ3.175-φ20mm
maximum travel speed 50mmin
maximum working speed 30mmin
precision 0.01mm
table top aluminum t-slot table protected with pvc
controller taiwan syntec
power requirements 3-phase 220v380v-50hz.
