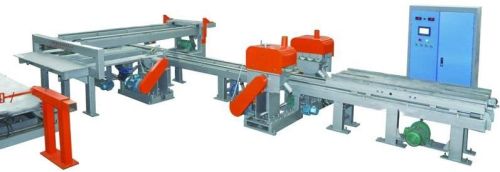

Electric Wood Panel Edge Trimming Cutting Saw

₹ 9.05 Lakh / Set

MOQ1 Set(s)
Driven TypeElectric
CertificationCE Certified, ISO 9001:2008 Certified, FDA
Packaging Typecustomized
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerEdge Trimming Machine
CertificationCE Certified, ISO 9001:2008 Certified, FDA
Availability7200kg
Packaging Typecustomized
Country of Origin380V
ConditionNew
Driven TypeElectric
Total Carbohydrate1year
Stacker System:Automatic Vacuum Stacker System
Controlling Mode:CNC
Working thickness3-50mm

High Precision Automatic Lengthways- Transverse Trimming Saw

Main features:

1.The main structure is welded by national standard steel, high stability and no deformation.

2.The operating system is accurately controlled by PLC to achieve the high precision sawing size and automatic stacking, reduce the labor's intensity.

3.The main electric units adopt famous brand Omron, Schneider, safety and reliable.

4.The machine adopts high precision wear-resistance guide rails and infrared positioning, diagonal error of plywood can be less than 0.5mm.

5.The machine adopts pre-load device, just need two workers, one work shift can produce 3000-4000Pcs 16mm plywood.

6.It has the automatic saw waste remover device.

Technical parameters:

Model	ABC3215-II
Working dimension	2440x1220mm
Diameter of saw blades	Ф250-Ф315mm
Working thickness	3-50mm
Rotary speed of the main saw blades	6500-7000r/pm
Overall dimension	8500x5500x1020mm
Machine weight	7200Kgs
Total motor power	43Kw
Remark	Include the automatic stacking system with lifting table and 4Pcs saw blades
