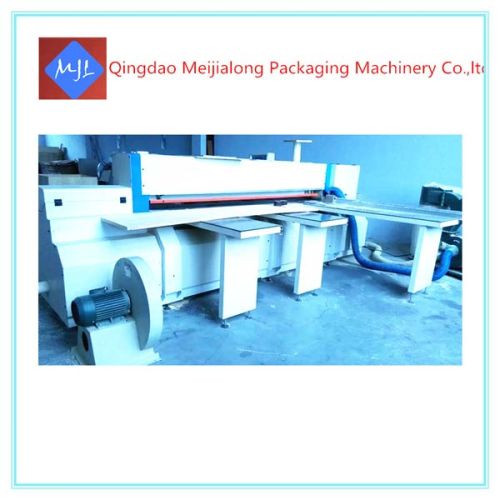

Wood Panel Saw 4255x4456x1230mm, Brand Name : MJL

₹ 91 / 15000 15000 Set

MOQ1 Set(s)
Brand NameMJL
Applicationwood panel cutting
Size4255x4456x1230mm
Storage Conditionsaw
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Qingdao Meijialong Packaging Machinery Co. ltd

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2011

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Size4255x4456x1230mm
Brand NameMJL
Applicationwood panel cutting
Storage Conditionsaw
Total Carbohydrate1 year
After-Sales Service Providedyes
Country of Originqingdao,shandong, China
other namereciprocating saw
functionwood panel cutting
Model NumberMJL-C-B

We are offering wood panel saw, 1.plc control, touch screen
2. Voltage and power line: 380v alternating current, 50hz, 3 phase and 4 lines
3. Maximum length can be cutted: 2500mm
4.maximum thickness of panel can be cutted: 60mm
5.power of main electric motor: 7.5kw
6.outer diameter of main saw blade: 300mm
7.inner diameter of main saw blade: 30mm
8.rotate speed of main saw blade : 5600rpm
9.small saw motor power::0.75kw
10.outer diameter of small saw blade: 130mm
11. Inner diameter of small saw blade: 20mm
12.rotate speed of small saw blade: 7200rpm
13 .speed of material feeding: 0-36 meters per min.
14.dimension: 4255x4456x1230
15.total weight:2080kgs
16. Air pressure:0.4-0.6mpa
this saw contain floating bead, so the feeding of wood panel is very easy. Also this saw contain sawdust collector .
