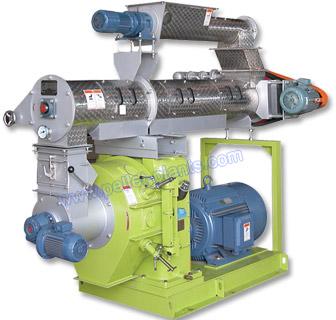

Wood Pellet Mill

We are offering wood pellet mill.features and advantages
1.low noise, energy saving and high output with continuous production.
2.the machine reliability and service life can be improved by adopting oil cooling lubricating system, which automatically lubricates each main bearing and oil seal.
3.the advanced gear driving device is made of wear-resisting material and forged by vacuum furnace heating treatment making the operation stable and capacity is 15% higher than belt driving.
4.adopt skf bearing and nak oil seal with more than 30000 hours gear service life.
5.as the biomass sawdust is of light weight, so they are needed to be pushed into pelletizing chamber by force to ensure the pelletizing process in a continuous and smooth way.
6.it adopts imperative feeding device.
ring die pellet mill working principle
after the material is sent into feeder, the screw conditioner will mix them evenly and then distributes the sawdust to pelletizing chamber. The rollers in the chamber drive the material into holes of ring die to form pellets. Meanwhile, there are several knives to cut the pellets into different size as they need. At last, the pellets will be discharged into a container ready for use.
Hrwr series wood pellet mill technology data
model power(kw) capacity dimension
hrwr 320 37kw 0.3~0.5t/h 2100*800*1300mm
hrwr 350 55kw 0.4~0.6t/h 2200*900*1500mm
hrwr 400 75kw 0.8~1t/h 2300*1000*2100mm
hrwr 420 90kw 1~1.2t/h 2300*1000*2100mm
hrwr 508 132kw 1.5~2.2t/h 3200*1300*1900mm
hrwr 558 160kw 2.5~3.5t/h 3500*1500*2800mm
wood pellets size: 6mm, 8mm,9mm,10mm ,12mm
quality guarantee: 2 years guarantee for main body.
