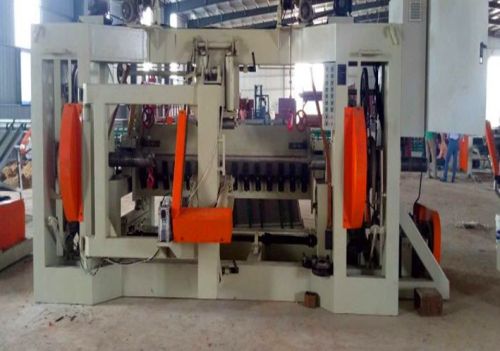

Automatic Wood Veneer Spindle Rotary Peeling Machine

₹ 9.05 Lakh / Set

MOQ1 Set(s)
Automatic GradeAutomatic, Semi Automatic
Brand NameMETRO
CertificationCe Certified, Iso 9001:2008, FDA
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Total Carbohydrate1 Year
Power42kw
Brand NameMETRO
After-Sales Service ProvidedWe Supply Full Core/face Veneer Production Line According To Customer's Demand, Fully/semi-automatic
Number Of FlowerVeneer Peeling Machine, Log Peeling Lathe Machine
CertificationCe Certified, Iso 9001:2008, FDA
Country of Origin380V
ConditionNew
Automatic GradeAutomatic, Semi Automatic
Power SourceElectric
Tool Holder:Double-tool Holder CNC Lathe

main features:
1. Spindle rotary peeling machine is the main machine for face veneer production, its maximum working diamter upto 700mm and final left diameter reach to 120mm.
2. Big motor drive and transmission to make the machine can peel minimum 0.1mm to maximum 2.6mm big range thickness range at the most suitable working speed.
3. Log hoisiting device on the top of the machine make the logs charging easily.
main technical specifications:

machine name	spindle rotary peeling machine for face veneer
machine model	bxq1826
max. Working diameter	φ1700mm
min. Working diameter	φ120mm
max. Working length	2600mm
veneer thickness range	0.1-2.6mm
veneer peeling speed	0-90m/min
main motor power	30kw
total motor power	42kw
machine weight	17000kgs
