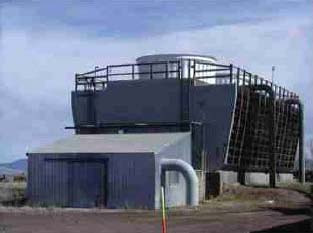

Wooden Cooling Tower

Listing ID #542865

We have created repute as Wooden Cooling Tower Manufacturer, Exporter and Supplier in Tamil Nadu, India. The Wooden Cooling Tower (Timber Cooling Timber (induced/Forced)) that we provide is developed to offer greater cooling capacity in smaller space with lower operating costs. Wooden Cooling Towers, offered by us, are constructed over sump designed to accommodate wooden Cooling Tower. The Wooden Cooling Tower gives 100% cooling efficiencies and gives good appearance flow rate from 5 M3/Hr to 500 M3/Hr as well as has differences in temperature 4^oC to 30^oC. Available in the capacities ranging from 5 TR to 1000 TR in single cell, the wooden Cooling Tower comes in a wide selection of frame sizes to efficiently serve application requirements. Capacity Of Cooling Tower Induced draft timber cooling tower are design with our well experience engineers, they usually design according to the customer request and their specific details given like LPM, inlet and out let temperature and WBT, Cooling Tower dimensions and maximum height Cooling Tower Capacity and size shall be calculated with this specific details provided by the customer. Cooling Tower Frame Work : Cast iron body adjustable distribution valves with locking bar shall be included; water distributions uniformly over the entire fill area. Cooling Tower Filling : Cooling Tower fan 4 or more aluminum blades, each can adjustable individually attached MS/AL Hub; oil gauge shall be extended outside the fan Cooling Tower Distribution System : All structural framework are chemically treated pinewood joint shall be through hot dip galvanized bolts and nuts and steel and nails shall be stainless steel. Cooling Tower Mechanical Equipment : Fill splash bars shall be consist of treated wood, drift eliminator shall be designed to limit drift loss. Features

• The location of this wooden cooling tower can be closer to the plant as there is no problem of drift
• There is no loss of efficiency because of the recirculation of the discharge of hot air from the tower top at significant height
• Our quality of wooden cooling tower design is superior
• This wooden cooling tower provides a fill pack that is wooden and a sprinkler in a design that maximizes efficiency and economy.
• Janani wooden Cooling Tower is highly reliable as well as durable
• Janani Cooling Towers fans and sprinkler provide great cooling in an area of minimum plan, with reduced energyNo cost of operation and so cost effective
• The risk of fire is negligible
• The minimum approach of the wooden cooling tower is around 4-5^oC
• Janani wooden Cooling Tower can be closely grouped thus saving height

• Casing & Louvers : The casing is a cement board of corrugated asbestos
• Filling & Support : The splash bars and the supporting frame of structure are wood that is treated with preservative.
• Drift Eliminator : Fans of standard aluminum alloy, multi bladed impellor of axial flow with aerofoil or profile blades that are similar, adjustable manually for pitch while the assembly does not move
• Fan Assembly : Fans of standard aluminum alloy, multi bladed impellor of axial flow with aerofoil or profile blades that are similar, adjustable manually for pitch while the assembly does not move
• Janani Nozzles : Janani Nozzles are specially designed to provide the required water distribution. They are highly resistant to the temperature and damages of weathering.
• Distribution Deck : The open gravity kind, which helps in the uniform distribution of water over the complete fill area.
