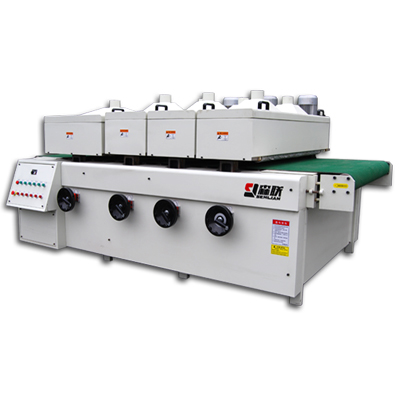

Contact SupplierWood grain wire brushing machine
function:
it applies two wire drawing rollers to remove the soft wood around grain of itself, one nonmetal grinding roller to make the grain cleaner, and two inverse sisal rollers to polish the surface more smooth.
This machine can make the grain on solid wooden board much more obvious and stereoscopic, which will looks more natural and better decorative.
� application filed:
furniture, door, wardrobe, cupboard, floor, etc.
� application board:
solid wood board, veneer, etc.
Technical parameters
optional working width
600mm800mm1300mm
min working thickness
solid wood:2.5mm, veneer:2.7mm
solid wood:2.5mm, veneer:2.7mm
solid wood:2.5mm, veneer:2.7mm
min working length 300mm
working speed 0-25mmin
speed of revolution 0-380 roundmin
nonmetal grinding roller î¦280mm, nonmetal wire: ï�0.4-0.8mm
wire drawing roller î¦280mm, wire:
î¦0.4-0.8mm, ï�0.1-0.5mm, ï�0.1-0.5mm
sisal polishing roller î¦310mm, sand: #180, #240, #320
full power 13.4kw13.4kw14.2kw 380v
estimated weight 1800kg2200kg2500kg
overall dimensions 3450*1770*1500mm
3450*1970*1500mm
3450*2400*1500mm
main parts
electric motor unis
frequency converter shihlin
