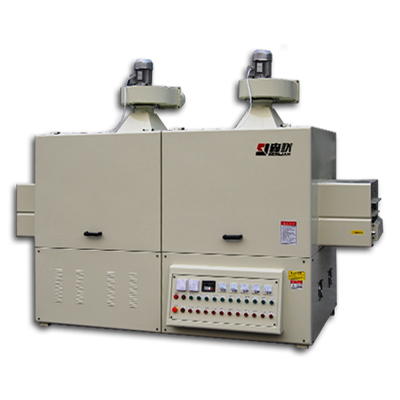

Wooden Linear UV Drying Machine, Brand Name : SENLIAN

Wooden linear UV dryer machine
Function: it applies the strong UV light to react with UV paint and curing in 3 to 5 seconds immediately, this light reaction greatly save the drying time and the storage space without any harmful substance volatilize.
this structure is equiped with three top UV lamps and two sides UV lamps to ensure curing three sides of wooden line. Application of reflectve materials inside and well sealed can use the UV light better.
� Application filed:
furniture, door, decoration, etc.
� Application line:
door frame, door line, window frame, window line, decoration line, PVC line, etc.
� Application paint:
mercury lamp for clear UV, gallium lamp for color UV.
TECHNICAL PARAMETERS
Option working width 300mm400mm
MAX working thickness 100mm
MIN working length 150mm
Working speed 0-25mmin
UV mercury lamp power 5.6kw*5
Conveyor Φ25mm
Full power 30.95kw35.75kw 380v
Estimated weight 800kg
Overall dimensions 3000*1000*1770mm 3135*1400*1770mm
MAIN PARTS
Electric motor UNIS
Frequency Converter Shihlin
Electrical appliance Chint
Voltage transformer Copper wire and magnetic flux leakage
Control system UV curing control system, LCD screen, Coolmay
Optional lamp for different UV paint UV mercury lamp, UV gallium lamp, UV iron gallium lamp
