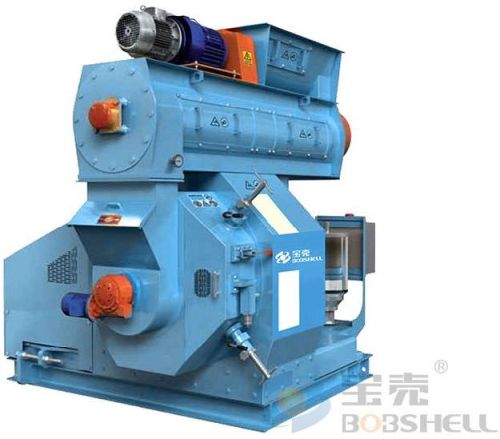

Contact SupplierWooden pellet machine
wooden pellet machine, hot sell wooden pellet mill, wood pelleter
product detail
wooden pellet machine has a high efficiency, stable and lower-maintenance and the life span of machine is over than 10 years.
You chose us to choose the quality assurance and reasonable price.
Pellet machine parameter
screw feeder conditioner
diameter 245mm diameter 400mm
motor power 2.2kw(3mp) length 1830mm
flow rate 5.27cubic dmr volume 360 cubic dm
speed 0-158rpm motor power 5.5kw
main motor ring die
main motor power 160kw(220mp) inner diameter 520mm
pulley diameter 1100mm working width 82mm
ring die rotate speed 6ms total width 182mm
belt type 5v-17001900 working area 13.93 cubic dm
roller shell weight
number of rollers 2 pcs main machine weight 5972kgs
outer diameter of rollers 250mm screw feeder
+con ditioner 990kgs
total weight 6960 kgs
