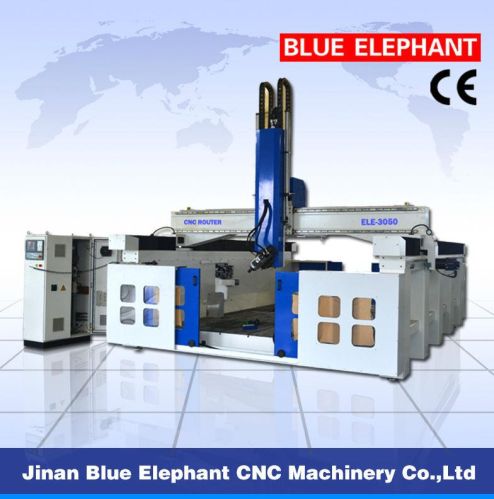

Woodworking CNC Router

We are offering woodworking cnc router.
Parameter:
model ele3050
working size x axis：3000mm
y axis：5000mm
z axis：900mm
transmission x,y helical rack and pinion drive, z ball screw transmission
table structure cast iron table
spindle power 9kw hsd es929 air cooling spindle
spindle speed 0~24000rmin
spindle inner cone hole iso30(max. Tool diameter 20mm)
driving system yaskawa servo
max. Traveling speed 16000mmmin
max. Working speed 10000mmmin
voltage ac 380v3ph50hz
controller syntec control system
operating command g code
function& features
self-lubricating, life-long maintenance-free taiwan guide rail.
Italian high-speed spindle, with top speed of 24000rpm, guaranteering maximum processing efficiency and productivity.
Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Applications：
ideal for automobile mold industry, suitable for eps, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
