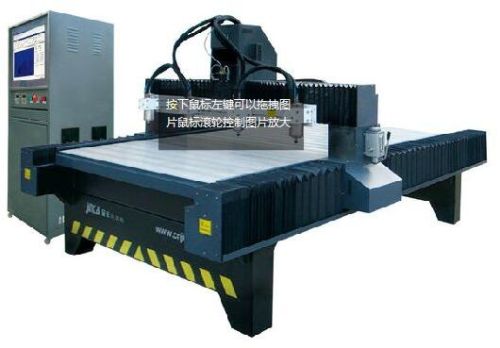

Woodworking CNC Router Machine Model ZMD-1625C

Features:
-Adopting imported linear square rail features heavy loading, stable running, and high precision.
-Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
-Employing high precision preload rolling ball screw for Z axis features High accuracy of engraving.
-CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools
-Integrated body with gantry movement design features rigidity and non deformation.
Standard configuration:
Control system: NC Studio motion control system
Driver: Stepping motor
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: High quality steel structure welded body with large brackets
Table: T-slot aluminum table.
Transmission type: Gear rack
Lubrication: Manual oil lubricating system
Dust cover for X, Y axis
Patented box type brackets
Patented appearance
Options:
-Double independent Z axes or single Z axis with multi spindles
-NC Studio PCIMC-6B motion control system
-DSP control system
-Panasonic, Yaskawa AC servo system
-High performance air cooling spindle
-Rolling ball screw transmission for Z axis
-Extended brackets; Feeding height can be 250mm height
-Dust collector
-Vacuum absorption
-Industrial cooling system
Feeding height (mm): 200mm
Idle speed: 20m/min
Processing speed: 10m/min
Spindle power: 800W~2.2KW Variable frequency water cooling spindle
Rotary rate: 6000 or 24000 rpm/min
Working voltage AC220V/50Hz or AC380V/50Hz
Engraving tool: Φ3.175/4/6/12.7mm
File format: G code/ HPGL
Positioning precision: ±0.05mm
Repeat positioning precision: ±0.02mm
