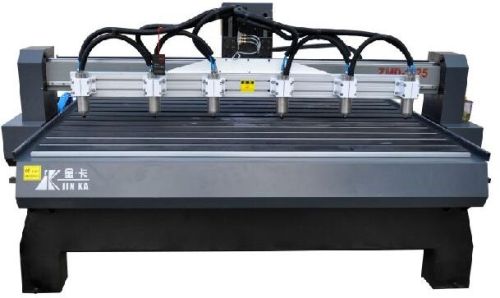

Woodworking CNC Router ZMD1513A

Features:
-Adopting imported linear square rail features heavy loading, stable running, and high precision.
-Gear rack transmission for all axes contributes to high accuracy and abrasion resistance
-Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
-Employing high performance frequency adjustable constant power water cooling spindle and inverter features good performance, large torque, and high efficiency.
-Fast and stable by adopting step driving system and double step motors for Y axis.
-The control system is compatible with software such asType3 / Artcam / CAXA / UG / PRO-E / Mastercam / Ucancam and so on.
Standard configuration:
Control system: NC Studio motion control system
Transmission type: Gear rack
Driver: Stepping motor
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: High quality steel structure welded body
Table: T-slot aluminum table
Options:
-Double independent Z axes or single Z axis with multi spindles
-Various spindles meet different applications
-Air cooling spindle
-NC Studio PCIMC-6B motion control system
-Manual pulse generator
-DSP control system
-Panasonic, Yaskawa AC servo system
-Rolling ball screw transmission for Z axis
-Dust cover(dust prevention) for X axis
-PVC board
-Manual oil lubricating system
-Dust collector
-Vacuum absorption
-Industrial cooling system
Feeding height (mm): 160mm
Idle speed: 20m/min
Processing speed: 10m/min
Spindle power: 800W~4.5KW Variable frequency water cooling spindle
Rotary rate: 6000 or 24000 rpm/min
Working voltage: AC220V/50Hz or AC380V/50Hz
Engraving tool: Φ 3.175/4/6/12.7mm
File format: G code/ HPGL
Positioning precision: ± 0.05mm
Repeat positioning precision: ± 0.02mm
