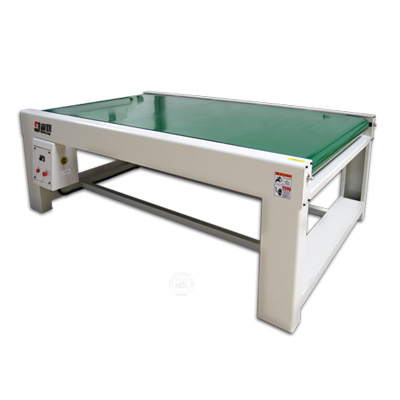

Dynamic belt conveyor
function: it applies the belt to convey board which speed is adjustable, and connect other machines to one line. On the other hand, it has the effect of cooling film after curing and observing after coating or sanding.
ã¢ï¿½â¢application filed:
furniture, door, wardrobe, cupboard, floor, decoration, building insulation, etc.
Technical parameters
optional working width 600mm800mm1300mm
max working thickness 1500mm
min working length 300mm
loading weight 100kg150kg250kg
working speed 0-30mmin
full power 0.75kw 380v
estimated weight 500kg530kg580kg
overall dimensions 2500*950*850mm 2500*1150*850mm 2500*1650*850mm
main parts
electric motor gpg
frequency converter shihlin
conveyor pu belt, ammerraal from holland
electrical appliance chint
optional style of body cool-rolled steel plate or u-steel
