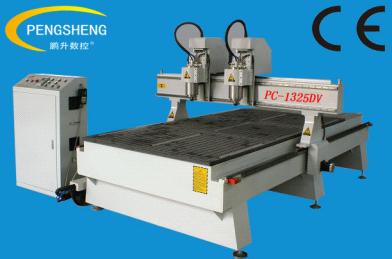

Woodworking Engraving Machine

₹ 2.70 Lakh / 100000 100000 Piece

MOQ1 Piece(s)
Cooling mode Water cooling
Command G code*.u00*.mmg*plt
Z structure Imported ball screw
Work-holding By suction
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Z structure Imported ball screw
Flash Memory 128M
Operating system DSP(with separate operation cabinet)
X.Y working area 1300mm*2500mm
Resolution0.02mm
Max speed 30m/min
Spindle power 3.0kw
Interface USB
Work-holding By suction
Working voltage AC380V/50/60 Hz ,3PH
Drive Motor Stepper
Spindle rotating speed 0-24000r/min
Cooling mode Water cooling
Diameter of cutter 3.175-12.7
Z working area200mm
Command G code*.u00*.mmg*plt
X,Y structure Rack and pinion transmission

We are offering woodworking engraving machine.
1.    whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
2.    two spindles can be working synchronously as well as separately.
3.    the spindle equipment is the first brand of the world, china domestic made water cooling spindle.
4.    three axes adopt imported high precision taiwan square orbit;x and y axes adopt rack and pinion transmission,fast working,high efficiency and low cost;z axis adopts imported ball screw,with high precision and long life time.
5.    well compatibility:cad/cam designing software e.g.
type3/artcam/castmate/wentai etc.
6.    it has the function of re-carving after break point and power failure.
7.        it has the function of forecasting process time.
8.    adopting advanced dsp system with usb connection,operated with the handle,convenient operation.our engaber can completely work off-line and do not take any computer resources.
9.   dust-collect function will clean up the carving residuum and make the operations tidier and more convenient.
10. Lubrication system,dsp control system
11. China domestic no oil vacuum pump, also can equipped with different vacuum pumps according to customers requirements
12. Adopting high-torque stepper motor and driver,with steady working capability and high positioning precision.
