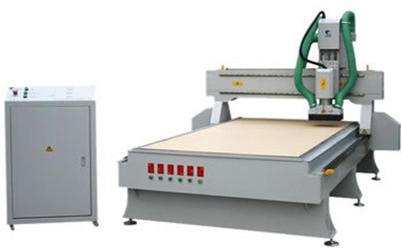

Woodworking Machine

We are offering woodworking machine.
feature :
square-shaped orbit for three axies,
ball screw for z-axises, gear-wheel for x yaxises
control: dsp system with usb interface
spindle: 5.5kw italy air cooling spindle
vacuum : six seperated vacuum area, oil free vacuum pump made in china.
good compatibility: cad/cam software, such as ucancam / type 3 / artcam / castmate etc.
servo motors made in china
10 blades, 2 collets (ï�6, ï�12.7).
application:
mainly used for production of closet doors, solid wood processing, furniture, etc. Also can be used for cutting and production of mdf.
no.â â  description parameter
1 table size 1480ã�3000mm
2 x,y working area 1300ã�2500mm
3 z working area 200mm
4 max. Traveling speed 40000mm/min
5 interface usb
6 command g code*.u00*.mmg*. Plt
7 surroundings for software windows98�2000/xp
8 working voltage 3ph ac380v/50hz
9 spindle power (domestic made) italy 5.5kw air cooled
10 spindle rotating speed 0-18000rpm/min
11 drive motor chinese servo motors
note: no further notification is performed when the parameters and models are changed.
