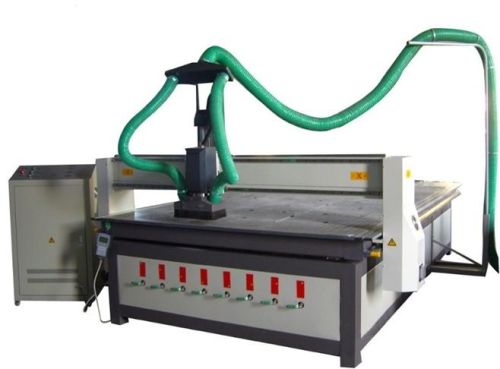

Woodworking Machine

We are offering woodworking machine.
Feature :
square-shaped orbit for three axies,
ball screw for z-axises, gear-wheel for x yaxises
control: dsp system with usb interface
spindle: 4.5kw chinese water cooled spindle
vacuum : eight seperated vacuum area, oil free vacuum pump made in china.
software : ucancam and type 3 software
good compatibility: cad / cam designing software, such as type 3 / artcam / castmate etc.
stepper motors
10 blades (φ6, φ12.7), 2 collets.
application:
mainly used for production of closet doors, solid wood processing, furniture, etc. Also can be used for cutting and production of mdf.
description parameter
x、y working area 2000×3000mm
z working area 200mm
table size 2180×3500mm
max. Speed 32000mm/min
max. Working speed 20000mm/min
max. Feeding height 200mm
command gcode*.u00*.mmg*.plt
surroundings for software windows98/2000/xp
work voltage 3ph ac380v/50hz
spindle power 4.5kw chinese water cooled
spindle rotating speed 24000 rpm
drive motor stepper
note: no further notification is performed when the parameters and models are changed.
