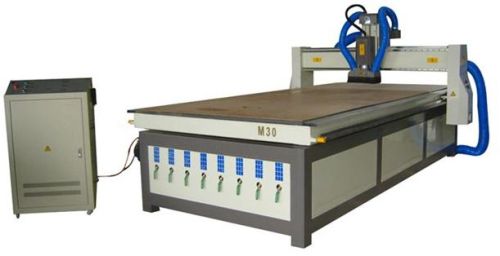

Woodworking Machine

₹ 7.76 Lakh / 10000 10000 Set

MOQ1 Set(s)
place of originShanghai, China (Mainland)
conditionnew
Supply TypeSupplier
Preferred Buyer Location All over the world

We are offering woodworking machine. feature : square-shaped orbit for three axies, ball screw for z-axises, gear-wheel for x yaxises control: dsp system with usb interface spindle: 4.5kw chinese....

Company Information

FH-Union International Co., Limited Hongkong

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering woodworking machine.
feature :
square-shaped orbit for three axies,
ball screw for z-axises, gear-wheel for x yaxises
control: dsp system with usb interface
spindle: 4.5kw chinese water cooled spindle
vacuum : six seperated vacuum area, oil free vacuum pump made in china.
good compatibility: cad / cam software, such as ucancam / type 3 / artcam / castmate etc.
stepper motors
10 blades, 2 collets (ï�6, ï�12.7).
application:
mainly used for production of closet doors, solid wood processing, furniture, etc. Also can be used for cutting and production of mdf
technical parameters:
functional index standard value
table size 1480ã�3000mm
x y working area 1300ã�2500mm
z working area 200mm
max travel speeding 35000mm/min
interface usb
conmand g code u00 mmg plt
surrounding of software window98/2000/xp
working voltage 3ph ac380v/50hz
spindle power(domestic made) 4.5kw chinese water cooled
spindle rotating speed 0-24000rpm/min
drive motor stepper
note: no further notification is performed when the parameters and models are changed.
