We are offering Construction Craddle Machine, that is manufactured using supreme quality raw materials and pioneering techniques. This machine is widely used at construction sites for lifting bulky goods and workers at a certain height. Also, this machine is tested on several parameters to avoid manufacturing effect at clients' end. Available in numerous specifications, this Construction Craddle Machine can be bought from us at reasonable prices.
Features:
Easy installation
Able to bear high loads
Robust construction
Designed with safety lock
Specification:-

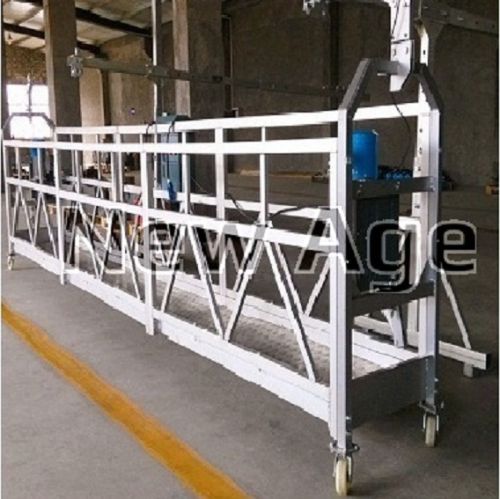

Construction Craddle Machine ZLP 800-7.5mtr
Model Type - ZLP 800
Rated Load - 800 kg.
Lifting Speed - 9 m/min
Max Lifting Height - 100 Meter
Dimension of platform(L*W*H) - (2.5m x 2 +1m+1.5m) x0.76m x 1.45m
Suspension mechanism
Front beam overhang - 1.3 ~1.7 m
Adjustable Height - 1.15~1.75 m
Hoist
Model - LTD 8.0
Lifting force - 8 KN
Motor -Power - 1.8 KW
Voltage -415 V, 50 HZ , 3 phase
Rotation speed - 1400 R/Min.
Brake Torque - 15.2 Nm
Safety lock - Type -Tilt proof safety lock
Locking cable angel - 3-8 degree
Allowable impulsive force - 30 KN
Weight
Suspension platform including hoist ,safety lock, electric control panel. - 540 kg
Suspension mechanism - 400 kg
Counterweight - 1000 kg
Whole machine weight without steel wire rope & power cable- 1940 kg
Wire rope - Type - 4X31SW+FC-8.6
Platform type - Galvanized coated
