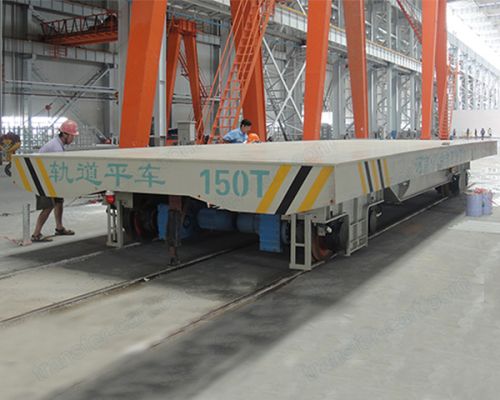

Contact SupplierWe offer workpiece truck with load capacity 1-300t.
Working principle kpds series ferry cars are powered by the low voltage electricity from the rails. The power source ac 380v is transformed into ac 36v safe voltage by step-down transformer and respectively connected to two rails and a conducting rail. The current collector gets the electricity from the rails and conducts the electricity into step-up transformer. The 36v voltage is transformed into 380v. The control system controls the motor turn positively and negatively, which drive the speed reducer to make the wheel move. We use the principle to operate the cart start, stop, go forward, backward and adjust speed and so on.
Main parts cart frame,wheels, ac motor, speed reducer, step-down transformer, step-up transformer, ground control cabinet, electrical control box, hand-held pendant, remote controller, warning lamp, siren
