Worm Shafts

• Upto 10 Module/3 D.P.
• Outer Diameter Upto 300 mm/12"
• Face Widths upto 500 mm/19"
• In Single or multi starts
• Center Distance from 25mm/1" to 500mm/20"
• Generally Worm Shafts are made from EN 353, Case Carburised, Hardened and Tempered upto 55-60 HRC.
• They are then accurately ground. Tooth Flank are ground on Worm Profile Grinder
• Also offered in other metals with or without hardening like in Mild Steel, EN8, EN 19, EN 24, Cast Iron or as specified
• standard and custom made as per Specifications, Drawing or Sample
• Worm shafts like for Worm Gear Boxes (most of the makes) of C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ex-Stock (Subject to conformation).
• For Automobiles and Industrial uses

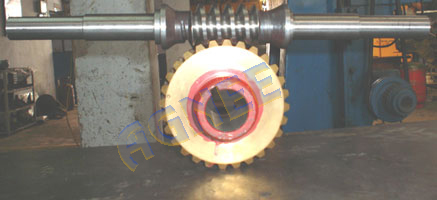

• Worm Shaft and Worm Wheel Pairs are suitable for power transmission in right angle
• Reverse engineering of Gear sets and Gear Boxes
