Woven Vibrating Screen Mesh

We offer Woven Vibrating Screen Differs in Material and Woven Type.
Description
Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.
It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.
The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.
With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

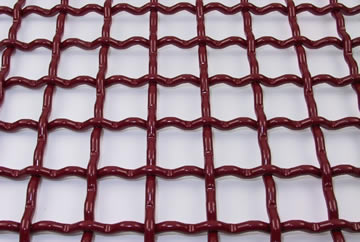

A piece of single wire crimped type of woven vibrating screen mesh in red color.
Single wire crimped woven vibrating screen mesh has thick diameter and small holes.A piece of double wire crimped type of woven vibrating screen mesh in red color.
Double wire crimped vibrating screen mesh has better strength than single wire.
Specification
Material: High tensile spring steel, manganese steel and stainless steel.
Wire diameter: 0.71mm - 12.5mm.
Opening size: 1mm - 100mm.
Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
