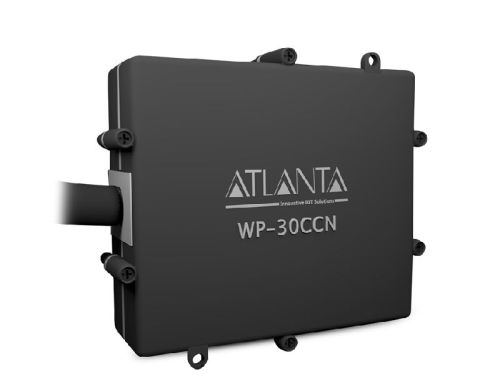

WP-30CCN Advanced GPS Vehicle Tracking Device

Get Latest Price

Operating Temperature-10°C to +70°C
Supply Voltage8-40V (protection upto 250V)
Brand NameAtlanta
ConditionNew
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Atlanta Systems Pvt. Ltd.

Connaught Place, Delhi

View Number

Member Since 2 Years
Nature of Business Manufacturer
Year of Establishment 1994

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of OriginIndia
Number Of FlowerGps Tracking Device
FeatureEasy To Use, Fast Working, Light Weight, Low Power Consumption, Speedy, Stable Performance
ConditionNew
Operating Temperature-10°C to +70°C
Supply Voltage8-40V (protection upto 250V)
Total Carbohydrate1yrs
BandDual-Band GSM/GPRS/EDGE
Humidity5% to 95%
Brand NameAtlanta
DataGPRS : Multislot Class 12, Coding Scheme CS 1, 2, 3, 4
Battery850mAh
GNSSGPS, QZSS, BeiDou, GAGAN
GNSS & GPS AntennaInternal High Gain Antenna
Warm Start< 22sec
Channels33 Tracking / 99 Acquisition Channel
Sensitivity-167dBm
Working CurrentSleep mode < 15mA, Active mode < 125mA
Hot Start< 1sec
I/O'sDigital Input: 7, Digital Output: 3, Analog Input: 2, OBD Port: 1
RF PowerClass 4 (2W@850/900MHz), Class 1 (1W@1800/1900MHz)
Acceleration Accuracy0.1 m/s²
Cold Start< 28sec
Velocity Accuracy0.1 m/s

WP-30CCN: WP stands for WaterProof, it’s a 16-port device with multiple Inputs & Outputs, this device is durable and aptly suited for mine, load carrier vehicles, and multiple utility commercial vehicles. It comes with an additional OBD2 port to connect with the CAN port to read the CAN-bus data atlantasys.com.
