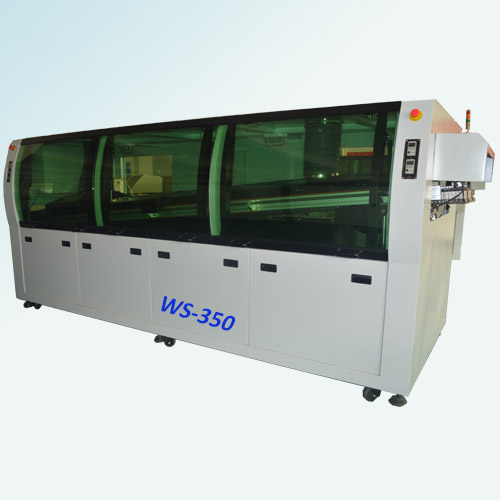

Ws-350 Lead Free Big Size Smt Wave Solder Machine

We are offering wave solder machine dimension:l*w*h(mm) 3600 x 1350 x 1750
weight(kg) approx.2300kg
power supply 3p5w,380220v 50hz 63a
startup power (kw) 25kw
operation power consumption 10kw
control system pc+plc
transmission methed air cylinder
spray pressure 0.25mpa--0.4mpa
flux flow 10--100mlmin
exhaust methed up & down exhaust
control mode pid + ssr+hot air
preheating zoon number 4
preheating length 1800mm
preheating temp. room temperature-300℃
pcb width (l x w)(mm) max.350mm
conveyor direction l to r; r to l
conveyor speed(mmmin) 0-2000
spray method by motor
component height(mm) top 120(option 160) bottom 15
conveyor width control manual
solder pot style motor drive
solder pot material full titanium
wave height adjust digital control by pc
flux fill in automatic fill
heater power 380vac 8kw
solder pot temperature 300℃
solder pot capacity lead-free 350kg
cooling method forced airairchiller(option)
finger cleaning system brush.
