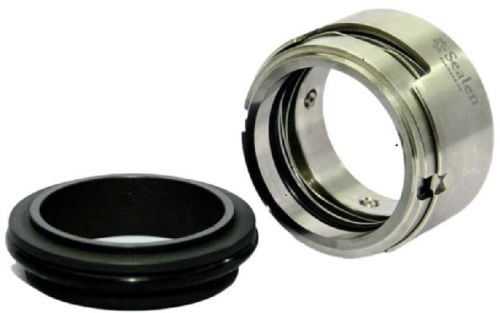

WSU 300 & WSU 310 Conical Spring Seal

WSU 300 & WSU 310 Conical Spring Seal

Listing ID #6745813

Get Latest Price
  • MOQ 1 Piece
  • Country of OriginMade In India
  • ApplicationsLight Abrasive Slurry, Light Sewage Water, High Viscosity Fluids General and Light Chemicals & Hydrocarbons.
  • Pressure10 Bars (max))
  • Shaft Dia18 to 105 mm / 0.875 to 4.000 Inch
  • Supply Type Manufacturer, Supplier, Importer
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

vtrust
SEALEN ENGINEERING LLP verified-icon
Andheri West, Mumbai, Maharashtra
View Number
  • Member Since 7 Years
  • Nature of Business Exporter
  • GST No. 27AELFS1954C1ZY

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Country of Origin Made In India
  • Pressure 10 Bars (max))
  • Velocity Up to 20 m/sec
  • Temperature -45 to +180°C
  • Applications Light Abrasive Slurry, Light Sewage Water, High Viscosity Fluids General and Light Chemicals & Hydrocarbons.
  • Shaft Dia 18 to 105 mm / 0.875 to 4.000 Inch

Wave Spring Unbalanced Seal WSU 300 Series & WSU 310 Series are single wave spring seals suitable for most general applications. Advantage of these seals is due to use of single wave spring. Seal is of compact design with reduced axial length. These seals can also be used in dirty application as spring clogging does not occur.



Seal Components/Face:

  • Carbon / Ceramic
  • Carbon / Silicon Carbide
  • Silicon Carbide / Silicon Carbide
  • Tungsten Carbide / Tungsten Carbide
  • Secondary Seal : WSU 300 : Elastomers
  • Secondary Seal : WSU 310 : PTFE, GFT
  • Metal Parts: SS 304, SS 316



Seal Characteristics :

  • Single Acting Unbalanced
  • Inside Mounted
  • Independent of Direction of Rotation
  • Wave Spring Loaded


Download


Download Detail File : Click Here
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

QUBA SEALS (INDIA) PRIVATE LIMITED is an ISO 9001: 2008 & NSIC certified company & one of the leading brands in India, engaged in designing, manufacturing and supply of mechanical shaft seals and Bearing Isolator Labyrinth Seals catering to the Chemical, Petrochemical, Food, Paint, Refrigeration, Beverage, Cement, Pharmaceutical, Ship Building, Power Generation & Steel Industries etc.
Quba’s range of Mechanical Seals are manufactured in a comprehensive facility & offers to the industry the most attractive combination that a user would expect, impeccable quality at economical price. For more than two decades “Quba” seals have proved, highly successful performances in Pumps, Agitators, Mixers, Reactors and Compressors in a wide range of Industries.
  • Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Importer
  • Number of Employees Below 20
  • Year of Establishment 2012
