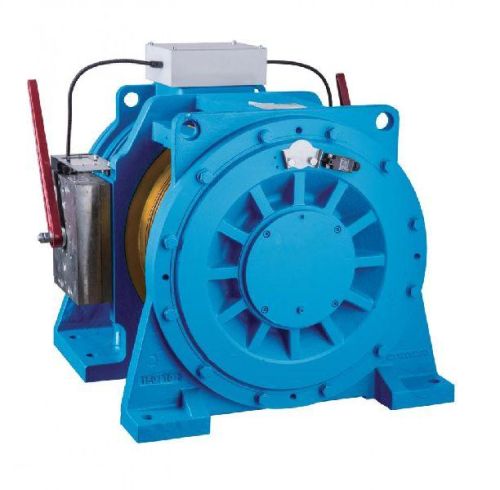

WTYF328 Gearless Traction Machine

Quick DetailsType: ElevatorsPlace of Origin: Zhejiang, China (Mainland)Brand Name: XINDAModel Number: WTYF328Drive Type: ACElevator Type: Passenger ElevatorsTraction ratio: 1:1,2:1Rated capacity: 1050,1200,1350,1600, 2000kgRated elevator speed: 3,3.5,4msMax. lifting height: 200mMax. shaft load: 15000kgApplicable converter: 3 phase 400VBrake voltage: DC200V for Brake opening, and DC100V for brake holdingNumber of motor poles: 20 polesPackaging & DeliveryDelivery Detail: 60 days after TT in advanceDouble Wrap Gearless Traction Machine,Traction Ratio 1:1 , 2:1 WTYF328Product DescriptionThis series of permanent-magnet synchronous gearless traction machines adapts double wrap, and the housing and support structure are integrated structure. So it has compact construction, with easy installation and maintenance, it's can bear high radial loads. Unique external rotor design is provided, low-noise block brake is mounted on both sides of the housing and operates with high sensitivity, high efficiency and good stability.Product CharacteristicsTraction ratio: 1:1,2:1Rated capacity: 1050,1200,1350,1600, 2000kgRated elevator speed: 3,3.5,4msMax. lifting height: 200mMax. shaft load: 15000kgApplicable converter: 3 phase 400VBrake voltage: DC200V for Brake opening, and DC100V for brake holdingNumber of motor poles: 20 poles Name:WTYF328 (High Speed) Overall & Installation
