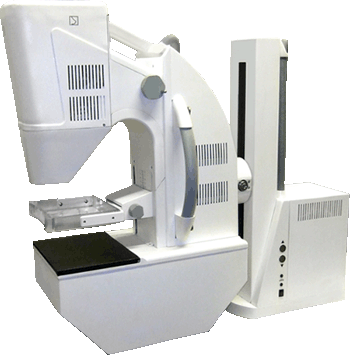

X-ray Digital Mammographic System

Madis X-ray Digital Mammographic System
Madis X-ray Digital Mammographic System is a modern tool for diagnosing breast diseases. It enables conducting all kinds of screening and diagnostic breast examinations provided in mammology. The system utilizes the digital technology of obtaining mammograms with image visualization on the monitor screen, paper and film media.
NO NEED in photolaboratory, X-ray film, chemical agents
The system consists of an X-ray stand device and workstations: X-ray technician’s workstation and radiotherapist’s diagnostic workstation. The system is powered from a single-phase AC network, 220 V, 50 Hz.
MADIS System provides:
Automatic or manual setting of exposure modes;
Higher diagnostic value of pictures due to digital processing of X-ray image (brightness and contrast correction, filtering, zoom, determination of geometric parameters, positive and negative images, rotation etc.);
Sending pictures over Internet (DICOM 3.0 format);
Recording and archiving pictures and medical opinions on paper, floppy disks, CD/DVD, in computer memory;
Examinations in diagnostic mode — up to 20 patients per shift, in screening mode — up to 40 patients per shift.
Performance Specification:
Operational field, mm 240х180
Spatial resolution, line pairs/mm 8,0
X-ray tube voltage, kV 28…40
X-ray tube current, µA, max 200
Exposure time, s 0,1 to 9,0
Medium effective dose per picture, mSv 0,1
Threshold contrast at surface exposure dose of 1mR, %, max 2,0
Dynamic range 100
Gray gradations on the monitor screen 256
Archiving system On CD/DVD
Power consumption, W, max 500
MADIS Digital Mammographic System allows prompt and reliable diagnosing
Warranty period - up to 24 months.
