X Ray Flat Panel Detector Image Processing System

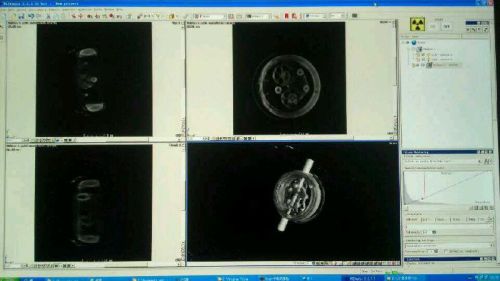

X Ray Flat panel detector Image processing system CP Series X ray Flat-panel detector/Image Intensifier X Ray Machine Provides a total digital imaging solution for conventional NDT. it is based on amorphous silicon TFTs, generating high-resolution corrected radiography images within 1.4 seconds, immediately available for further processing at system level. Model 0822 1313DX 2520DX 2530HE Pixel area(Total) 204.8X204.8mm 130x130mm 19.5x24.4mm 249x302mm Matrix pixel(total) 1024x1024(1x1) 1024x1024(1x1) 1536x1920(1x1) 1024x1024(1x1) Pixel pitch 200 127 127 139 Convertion screen Csl or Gd2O2S:Tb DRZ+,Csl DRZ+,Csl DRZ+,Csl Energy range 20kvp-15Mev 40kvp-225kvp 40kvp-320kvp 20kvp-16Mev A/D Conversion 16bits 16bits 16bits 16bits Frame rate 25fps(1x1) 50fps(2x2) 30fps(1x1) 60fps(2x2) 12.5fps(1x1) 30fps(2x2) 9fps(1x1) 30fps(2x2) Operating temperature 10-35(max) 10-45(max) 10-35(max) -10-40(max) storage temperature -20-70degree -20-70degree -20-70degree -15-50degree operating humidity 10-90% 10-90% 10-90% 10-95% Weight 10.9kg 2.1kg 2.51kg 13kg software chinese/english optional chinese/english optional chinese/english optional chinese/english optional Imaging processing software functions:       System operation language:Chinese or English       Interface:window operation        Picture format:standard bmp format        Real time inspection: operator can observe the positive and negative
