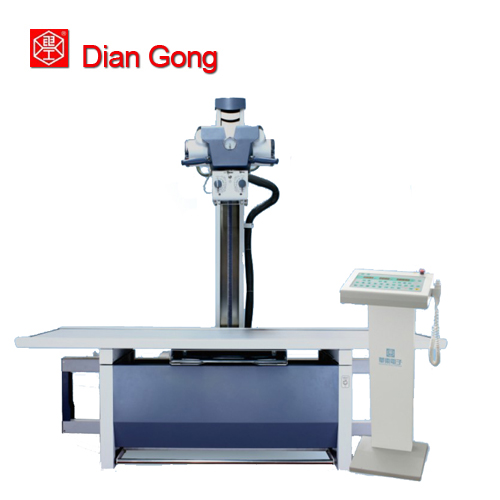

X Ray Machine

Appication:
this machine can be used in the human body and lateral x-ray photographic film and other diagnostic
key features:
1:three-dimensional tube rack,integrated bedpost,can be used in the human body and lateral x-ray photographic film and other diagnostic.
2:computer program control system, shooting conditions can be set kv priority mode,ma priority control mode, mas exposure mode and multi-position preset mode of the human body, operation convenience
3:high intelligence, automatic fault detection and fault error code display
4:high-frequency inverter technology, the regional power grid adaptable, x-ray output stable, short time exposure, low dose irradiation, high volume radiation, image contrast clearly
5:dr interface to facilitate the digital upgrade
6:pwm voltage regulation technology, micro-computer cpu technology closed loop control to ensure the product stable and reliable
technical parameters:
3-phase power 380vâ±38v
power frequency 50hzâ±1hz
power resistance â�¤0.5î©
tube current 16ma-200ma
tube voltage 40-125kv
standard work frequency � 30khz
standard configurations:
1. X-ray generator
2. Radiography bed
3. Control console
4. X-ray tube
