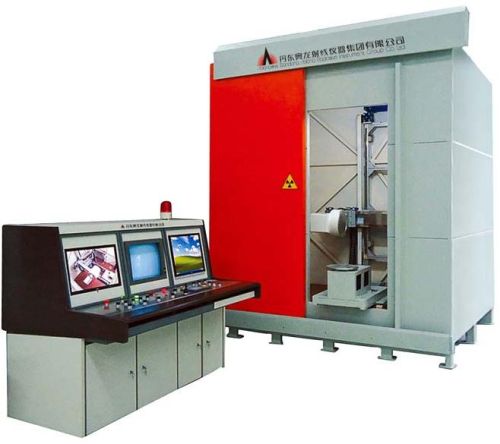

X-ray Real Time Imaging System, Brand Name : Aolong

System Composition
*X-ray unit
*Imaging unit
*Inspection platform
*Image processing unit
*Lead cabinet
Parameters
*System resolution�16Lpcm~40Lpcm
50Lpcm~60Lpcm
*System sensitivity�0.7%~2�
*Tube voltage range�20kV~450kV
*Tube current range�0mA~20mA
Imaging Method
*By flat panel detector
*By liner scan with high solution digital imager (micron)
*By image intensifier
Main Function of image processing software
*Electric shoot, images can be stored by formatted text
*Window and position technology, various flatness reducing noise choices
*2-512 image de-noising technology, improving resolution ratio and sensitivity of pictures
*Edge enhancement, sharpen negative image, artificial color, real-time image magnify and shrink
*Flaw size measurement and grey scale measurement
*Inspection date, operator name, flaw type, serial number of workpieces tested can be recorded and report can be printed out.
*CD store, report print
*Laser orientation
*Dynamic storage and dynamic playback
*Set with applicative software, performing automatic identification.
*Own the Auto-control function for the image flaws
Mechanical detection scanning platform
*Basic type: four-axis motion detection scanning
*Standard type: five-axis motion detection scanning
*Function type: multi-axis motion detection scanning
Radiation protection
In line with national standards. We had got national radiation safety license
